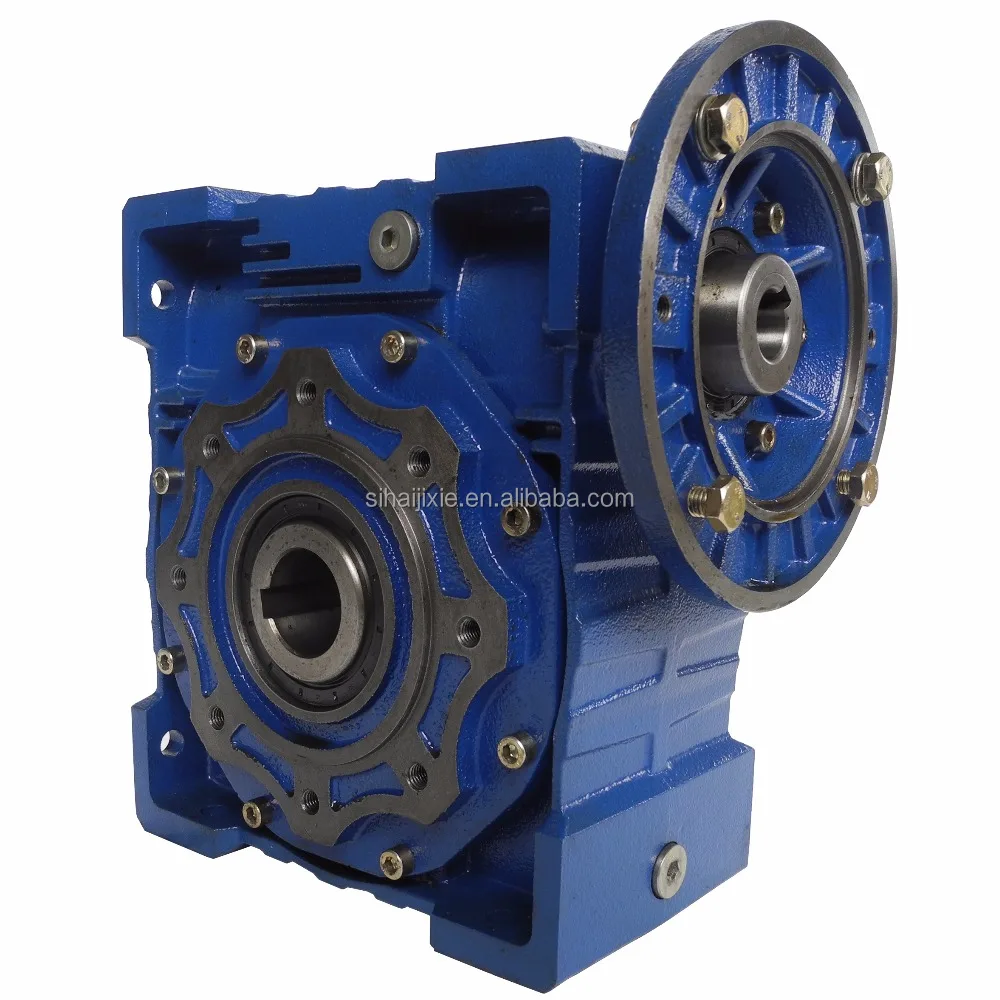

Overview
Swift Specifics
- Location of Origin:Zhejiang, China
- Brand Identify:
-
OEM
- Design Quantity:
-
NMRV130
- Gearing Arrangement:
-
Worm
- Output Torque:
-
547NM
- Rated Energy:
-
1.5KW
- Input Velocity:
-
1400rpm
- Output Pace:
-
18rpm
- Speed ratio:
-
eighty
- Enter Flange:
-
250mm
- Input hole:
-
28mm
- IEC:
-
100B5
- Content:
-
cast iron
- Output hole:
-
45mm
- Bearing:
-
common bearing
- Lubricant:
-
Mineral / Synthetic
- Oil seal:
-
SKF,NAK & TTO Oil seal
- Colour:
-
Blue/Silver/Coustomzied
Packaging & Supply
- Offering Units:
- Solitary merchandise
- One package deal size:
- 35X30X50 cm
- Single gross weight:
- sixty five.000 kg
-
Guide Time
: -
Quantity(Parts) one – 5 six – ten 11 – twenty >20 Est. Time(days) five ten 20 To be negotiated
On the web Customization
Qualities:
RV series worm gearbox / velocity reducer is a new technology of goods created by our company with combination of superior technologies both at residence and abroad. It attribute in:
one) Aluminium alloy die cast casing for RV 025,030,040,050,063,075,090,light weight and non-rustingcast iron casing for RV110,a hundred thirty,a hundred and fifty.
2) large output torque.
three) stable transmission with lower noise.
four) high geat-radiation efficiency.
five) elegant shape,small volume and durable serving life
6) suitable for omnibearing installation
Model & Mark :NMRV one hundred thirty-80 E F1 AZ B3
|
NMRV |
NMRV means hole input with flange |
NRV means shaft input without flange |
|
130 |
Distance between the centers of worm and worm gear |
|
|
eighty |
Speed ratio of worm gear speed reducer |
|
|
E |
“E” means double extension worm shaft, no mark means single extension worm shaft |
|
|
F1 |
“F” means output flange, “FL” means high output flange,no mark means output without flange |
|
|
AZ |
“AZ”means bidirectional output shaft, “GZ”means unilateral output shaft and no mark means hole output |
|
|
B3 |
Installation position code |
|
The velocity reducer NMRV130 Add-ons define dimension
|
K1 |
G |
KG |
KH |
R |
|
|
NMRV130 |
250 |
30 |
sixty nine |
25 |
35 |
Velocity reducer Size of Single Extension & Double extension
|
|
D(h6) |
B |
B1 |
G1 |
L |
L1 |
f |
b1 |
t1 |
|
NMRV130 |
45 |
80 |
eighty five |
170 |
265 |
340 |
M16 |
14 |
48 |
Worm gearbox of Double extension worm shaft
|
G2 |
d(j6) |
B |
F |
b1 |
t1 |
|
|
NMRV130 |
one hundred fifty five |
30 |
80 |
M10 |
8 |
33 |
The Worm gearbox NMRV130 With Motor
|
IEC Motor adapters |
||||||
|
Design |
PAM(IEC) |
N |
M |
P |
ration |
Shaft:D |
|
NMRV130 |
132B5 |
230 |
265 |
three hundred |
eighty |
– |
|
NMRV130 |
132B14 |
230 |
265 |
three hundred |
80 |
– |
|
NMRV130 |
100/112B5 |
a hundred and eighty |
215 |
250 |
eighty |
28 |
|
NMRV130 |
100/112B14 |
a hundred and ten |
a hundred thirty |
160 |
eighty |
28 |
|
NMRV130 |
90B5 | a hundred thirty | a hundred sixty five | 200 | eighty | 24 |
Worm gearbox of Mounting positions
Worm gearbox of Position diagram for output flange
Worm gearbox of position diagram for torque arm
Worm gearbox of position diagram for one-way output shaft
Notice for ordering:
1) when ordering,please refer to the details of the products and tell us the exact type your need according to your requirements,like input speed,output torque,configuration,installation,and many others:the installation position of the products in the order should accord with your actual needs,in any other case, it will result in oil leakage, which will impact the serving life of the products negatively.if there is special requirement to the installation position,please stress it and inform us.
two) to attain the excellent state of the variators, the common working speed should be chosen in the middle position,instead,it ismot appropriate to choose in the positions of min,or max.speed
three) if your requirements of worm gearbox or speed variator are different from shte standard products as in the catalogue,like:some portion that should be customized or mounted with special motors,please inform us in advance
