Overview
Rapid Specifics
- Gearing Arrangement:
-
Worm
- Output Torque:
-
66N.M~~304N.M
- Enter Velocity:
-
1400rpm
- Output Pace:
-
14~~186rpm
- Spot of Origin:Zhejiang, China
- Brand name Title:
-
OEM
- Velocity ratio:
-
seven.5/10/fifteen/twenty/25/thirty/forty/50/sixty/eighty/100
- Housing substance:
-
Aluminium alloy
- Worm equipment material:
-
chromium alloy 20CrMnTi
- Worm wheel substance:
-
bronze ZQsn10-1
- Color:
-
Blue/Silver/Coustomzied
- Certification:
-
ISO9001:2008 CCC,CE
- Additional support:
-
OEM
Packaging & Shipping and delivery
- Marketing Units:
- Single item
- Solitary package deal size:
- 225X215X285 cm
- Solitary gross bodyweight:
- 11.five hundred kg
- Deal Variety:
- one laptop / carton,several cartons / picket pallet
- Picture Instance:
-
Lead Time
: -
Quantity(Sets) one – ten >10 Est. Time(times) five To be negotiated
On-line Customization

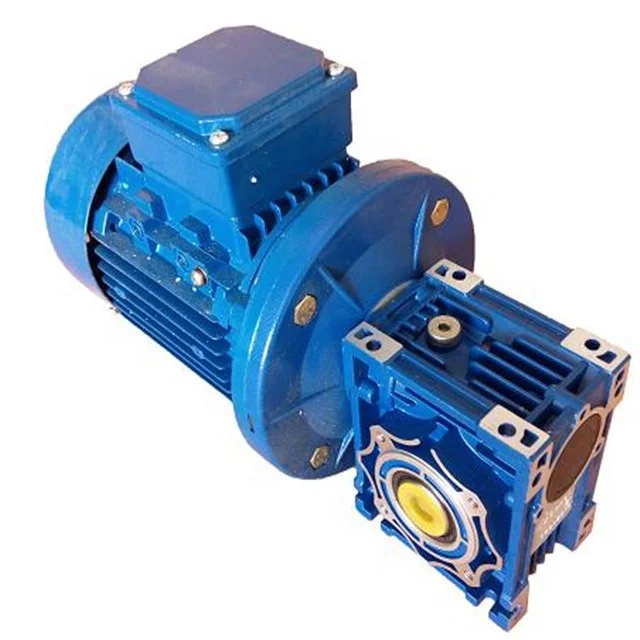

MNRV075 Worm Gearbox Speed Reducer Equipment
Characteristics
one.Wide transmission rate, strong output torque
two.Compact mechanical structure, light weight, small volume&Good heat-dissipating
three.Smooth operation with lower noise or vibration
four.Easy mounting, free linking, high efficiency
five. PERFECT SUBSTITUDE FOR MOTOVARIO AND BONFIGLIOLI PRODUCTS
Programs
Wide range of application,including light industry of food &beverage, Cement,
bundle,construction material,chemicals and etc.
Overall performance parameter for RV collection worm gear velocity reducer
Functionality parameter for RV sequence worm gear speed reducer
| Motor power | Product | speed ratio | output speed | output toruqe |
|
.25kw 1400rpm |
NMRV075 | sixty | 24rpm | 68.0N.M |
| NMRV075 | 80 | 18rpm | eighty.0N.M | |
| NMRV075 | a hundred | 14rpm | ninety four.0N.M | |
|
.37kw 1400rpm |
NMRV075 | 40 | 35rpm | seventy four.0N.M |
| NMRV075 | 50 | 28rpm | 88.0N.M | |
| NMRV075 | sixty | 24rpm | 97.0N.M | |
| NMRV075 | eighty | 18rpm | 119.0N.M | |
| NMRV075 | 100 | 14rpm | 139.0N.M | |
|
.55kw 1400rpm |
NMRV075 | 25 | 56rpm | seventy six.0N.M |
| NMRV075 | thirty | 47rpm | 87.0N.M | |
| NMRV075 | 40 | 35rpm | 108.0N.M | |
| NMRV075 | 50 | 28rpm | 128.0N.M | |
| NMRV075 | sixty | 24rpm | one hundred forty four.0N.M | |
| NMRV075 | eighty | 18rpm | 177.0N.M | |
| NMRV075 | 100 | 14rpm | 206.0N.M | |
|
.75kw 1400rpm |
NMRV075 | fifteen | 94rpm | 66.0N.M |
| NMRV075 | twenty | 70rpm | 85.0N.M | |
| NMRV075 | 25 | 56rpm | one hundred and one.0N.M | |
| NMRV075 | 30 | 47rpm | 117.0N.M | |
| NMRV075 | forty | 35rpm | 147.0N.M | |
| NMRV075 | 50 | 28rpm | 174.0N.M | |
| NMRV075 | 60 | 24rpm | 196.0N.M | |
| NMRV075 | eighty | 18rpm | 250.0N.M | |
|
one.1kw 1400rpm |
NMRV075 | 10 | 140rpm | 66.0N.M |
| NMRV075 | 15 | 94rpm | 95.0N.M | |
| NMRV075 | 20 | 70rpm | 122.0N.M | |
| NMRV075 | 25 | 56rpm | 148.0N.M | |
| NMRV075 | 30 | 47rpm | 171.0N.M | |
| NMRV075 | 40 | 35rpm | 216.0N.M | |
| NMRV075 | 50 | 28rpm | 263.0N.M | |
| NMRV075 | 60 | 24rpm | 297.0N.M | |
|
1.5kw 1400rpm |
NMRV075 | 7.5 | 186rpm | 68.0N.M |
| NMRV075 | 10 | 140rpm | 89.0N.M | |
| NMRV075 | fifteen | 94rpm | 129.0N.M | |
| NMRV075 | twenty | 70rpm | 166.0N.M | |
| NMRV075 | 25 | 56rpm | 202.0N.M | |
| NMRV075 | thirty | 47rpm | 233.0N.M | |
| NMRV075 | forty | 35rpm | 299.0N.M | |
|
2.2kw 1400rpm |
NMRV075 | seven.five | 186rpm | ninety nine.0N.M |
| NMRV075 | 10 | 140rpm | 131.0N.M | |
| NMRV075 | fifteen | 94rpm | 189.0N.M | |
| NMRV075 | 20 | 70rpm | 249.0N.M | |
| NMRV075 | 25 | 56rpm | 304.0N.M | |
| NMRV075 | thirty | 47rpm | 247.0N.M | |
|
3.0kw 1400rpm |
NMRV075 | 7.5 | 186rpm | 135.0N.M |
| NMRV075 | 10 | 140rpm | 178.0N.M | |
| NMRV075 | 15 | 94rpm | 258.0N.M | |
|
4.0kw 1400rpm |
NMRV075 | seven.5 | 186rpm | 180.0N.M |
| NMRV075 | ten | 140rpm | 237.0N.M |
Technical information:
| Model | RV025 030 040 050 063 075 090 110 a hundred thirty one hundred fifty |
| One unit variations |
NMRV – equipped for motor flanged coupling, NRV – with enter shaft, NMRV-E motor flanged coupling with worm extension shaft, NRV-E with double extension worm shaft, |
| Power | .06—-15KW |
| Single unit reduction ratio | 1:five 7.five ten fifteen twenty 25 thirty 40 fifty 60 eighty 100 |
| Output torque | 2.six—1195N.M |
| Worm shaft | 20CrMnTi with carburizing and quenching.The hardness of surface area is fifty six-62HRC with carbonized layer .5-.8mm |
| Worm wheel | worm mandrel is HT250,and worm ring gear,ZQSn10-1 |
