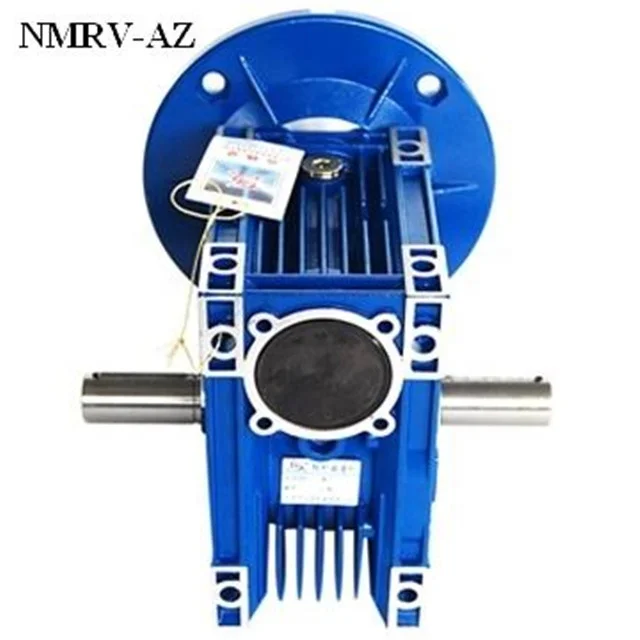

NMRV050 Worm Gearbox Speed Reducer Machine gearbox transmission

Overview

Quick Information

Gearing Arrangement:

Worm

Output Torque:

66N.M~~304N.M

Input Speed:

1400rpm

Output Speed:

fourteen~~186rpm

Spot of Origin:Zhejiang, China

Brand name Identify:

OEM

Velocity ratio:

7.5/10/15/twenty/twenty five/thirty/40/fifty/60/eighty/a hundred

Housing substance:

Aluminium alloy

Worm gear content:

chromium alloy 20CrMnTi

Worm wheel material:

bronze ZQsn10-1

Colour:

Blue/Silver/Coustomzied

Certificate:

ISO9001:2008 CCC,CE

Added services:

OEM

Packaging & Shipping

Promoting Models:

Single merchandise

Single bundle dimensions:

225X215X285 cm

Single gross bodyweight:

eleven.five hundred kg

Bundle Type:

one computer / carton,a number of cartons / picket pallet

Photo Instance:

Guide Time
:

Amount(Sets)	one – ten	>10
Est. Time(days)	5	To be negotiated

On the web Customization

MNRV Worm Gearbox Velocity Reducer Device

Functions

one.Wide transmission rate, strong output torque
2.Compact mechanical structure, light weight, small volume&Good heat-dissipating
three.Smooth operation with lower noise or vibration
4.Easy mounting, free linking, high efficiency
5. PERFECT  SUBSTITUDE FOR  MOTOVARIO AND BONFIGLIOLI PRODUCTS

Programs

Wide range of application,including light industry of food &beverage, Cement,
package deal,construction material,chemicals and etc.



Overall performance parameter for RV sequence worm gear velocity reducer



Functionality parameter for RV series worm equipment velocity reducer



Motor power	Design	speed ratio	output speed	output toruqe
.25kw  1400rpm	NMRV075	60	24rpm	68.0N.M
	NMRV075	eighty	18rpm	80.0N.M
	NMRV075	a hundred	14rpm	ninety four.0N.M
.37kw  1400rpm	NMRV075	forty	35rpm	74.0N.M
	NMRV075	50	28rpm	88.0N.M
	NMRV075	60	24rpm	ninety seven.0N.M
	NMRV075	eighty	18rpm	119.0N.M
	NMRV075	100	14rpm	139.0N.M
.55kw  1400rpm	NMRV075	twenty five	56rpm	76.0N.M
	NMRV075	thirty	47rpm	87.0N.M
	NMRV075	forty	35rpm	108.0N.M
	NMRV075	fifty	28rpm	128.0N.M
	NMRV075	sixty	24rpm	144.0N.M
	NMRV075	eighty	18rpm	177.0N.M
	NMRV075	100	14rpm	206.0N.M
.75kw  1400rpm	NMRV075	15	94rpm	66.0N.M
	NMRV075	twenty	70rpm	85.0N.M
	NMRV075	twenty five	56rpm	one zero one.0N.M
	NMRV075	thirty	47rpm	117.0N.M
	NMRV075	40	35rpm	147.0N.M
	NMRV075	fifty	28rpm	174.0N.M
	NMRV075	60	24rpm	196.0N.M
	NMRV075	80	18rpm	250.0N.M
1.1kw  1400rpm	NMRV075	10	140rpm	66.0N.M
	NMRV075	15	94rpm	95.0N.M
	NMRV075	20	70rpm	122.0N.M
	NMRV075	25	56rpm	148.0N.M
	NMRV075	30	47rpm	171.0N.M
	NMRV075	forty	35rpm	216.0N.M
	NMRV075	50	28rpm	263.0N.M
	NMRV075	60	24rpm	297.0N.M
1.5kw  1400rpm	NMRV075	seven.5	186rpm	sixty eight.0N.M
	NMRV075	10	140rpm	89.0N.M
	NMRV075	fifteen	94rpm	129.0N.M
	NMRV075	20	70rpm	166.0N.M
	NMRV075	twenty five	56rpm	202.0N.M
	NMRV075	30	47rpm	233.0N.M
	NMRV075	forty	35rpm	299.0N.M
2.2kw  1400rpm	NMRV075	seven.five	186rpm	99.0N.M
	NMRV075	10	140rpm	131.0N.M
	NMRV075	15	94rpm	189.0N.M
	NMRV075	twenty	70rpm	249.0N.M
	NMRV075	25	56rpm	304.0N.M
	NMRV075	thirty	47rpm	247.0N.M
three.0kw  1400rpm	NMRV075	seven.five	186rpm	a hundred thirty five.0N.M
	NMRV075	10	140rpm	178.0N.M
	NMRV075	15	94rpm	258.0N.M
four.0kw  1400rpm	NMRV075	seven.five	186rpm	180.0N.M
	NMRV075	ten	140rpm	237.0N.M



Complex information:

Design	RV025 030 040 050 063 075 090 a hundred and ten one hundred thirty a hundred and fifty
Single device versions	NMRV – equipped for motor flanged coupling, NRV – with input shaft, NMRV-E motor flanged coupling with worm extension shaft, NRV-E with double extension worm shaft,
Power	.06—-15KW
Single device reduction ratio	1:5 seven.5 10 fifteen twenty twenty five 30 40 50 sixty 80 one hundred
Output torque	2.six—1195N.M
Worm shaft	20CrMnTi with carburizing and quenching.The hardness of surface is 56-62HRC with carbonized layer .five-.8mm
Worm wheel	worm mandrel is HT250,and worm ring gear,ZQSn10-one
