Overview
Quick Specifics
- Condition:
-
New
- Spot of Origin:Zhejiang, China
- Software:
-
bars,screws, worm,rods
- Creation Potential:
-
four-25(pcs/min)
- Showroom Place:
-
Germany, Russia, Spain, Australia
- Video clip outgoing-inspection:
-
Offered
- Machinery Test Report:
-
Offered
- Advertising and marketing Variety:
-
Sizzling Merchandise 2019
- Guarantee of core elements:
-
1 12 months
- Main Components:
-
PLC, Motor, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
- Model Identify:
-
OEM
- Voltage:
-
380V
- Electrical power:
-
7350W
- Dimension(L*W*H):
-
1850*1910*1380mm
- Weight:
-
3600(KG)
- Certification:
-
ISO 9001-2008, CE
- Guarantee:
-
one Yr
- Following-revenue Service Provided:
-
Cost-free spare elements, Area installation, commissioning and instruction, Online video technical help, On-line assistance
- After Warranty Provider:
-
Video clip specialized support, On the web assistance, Spare components, Discipline routine maintenance and repair provider
- Crucial Selling Factors:
-
Higher-precision
- Nearby Service Location:
-
Germany, Spain
- Relevant Industries:
-
Building Materials Outlets, Equipment Mend Shops, Retail, Construction works , Energy & Mining
- Function piece diameter:
-
twelve-100/mm
- Assortment of pitch rolled:
-
one.-eight.0P
- Max.length of thread rolled:
-
Fastened and rolling-through for choice
- Spindle velocity:
-
16/twenty five/40/63rpm (variable pace)
- Inside diameter of rolling die:
-
75mm
- Outside diameter of rolling die:
-
a hundred forty five-235mm
- Thickness of rolling die:
-
120mm
- Hydraulic motor:
-
2.2KW
- equipment motor:
-
seven.5kw
- Max rolling force:
-
25T
Packaging & Shipping and delivery
- Selling Models:
- Single item
- One deal dimension:
- 1950X2100X1500 cm
- Solitary gross weight:
- 3700.000 kg
- Bundle Type:
- one. fasteners producing device is packed in wooden situation
2. neutral deal can be approved
-
Direct Time
: -
Amount(Sets) 1 – five >5 Est. Time(times) fifteen To be negotiated
On the web Customization
Video clip Description
Hydraulic thread rolling equipment thread and profile rolling machines two roll devices spline rolling equipment Knurling rolling
Functions:
one.Blend twin-row needle bearing and cylindrical roller bearing for device spindle to assure the precision and rigidity.
2.For the driving method of spindle, adopt multi-phase equipment box to realize steady and convenient speed variation.
3.With sandwich plate valve for hydraulic program, the total machine seems to be lovely with much less space usage and dependable functionality.
4.For the control modes, there are guide, semi-automobile and automated modes.
5.Fully computerized feeding, conserve time and manpower.

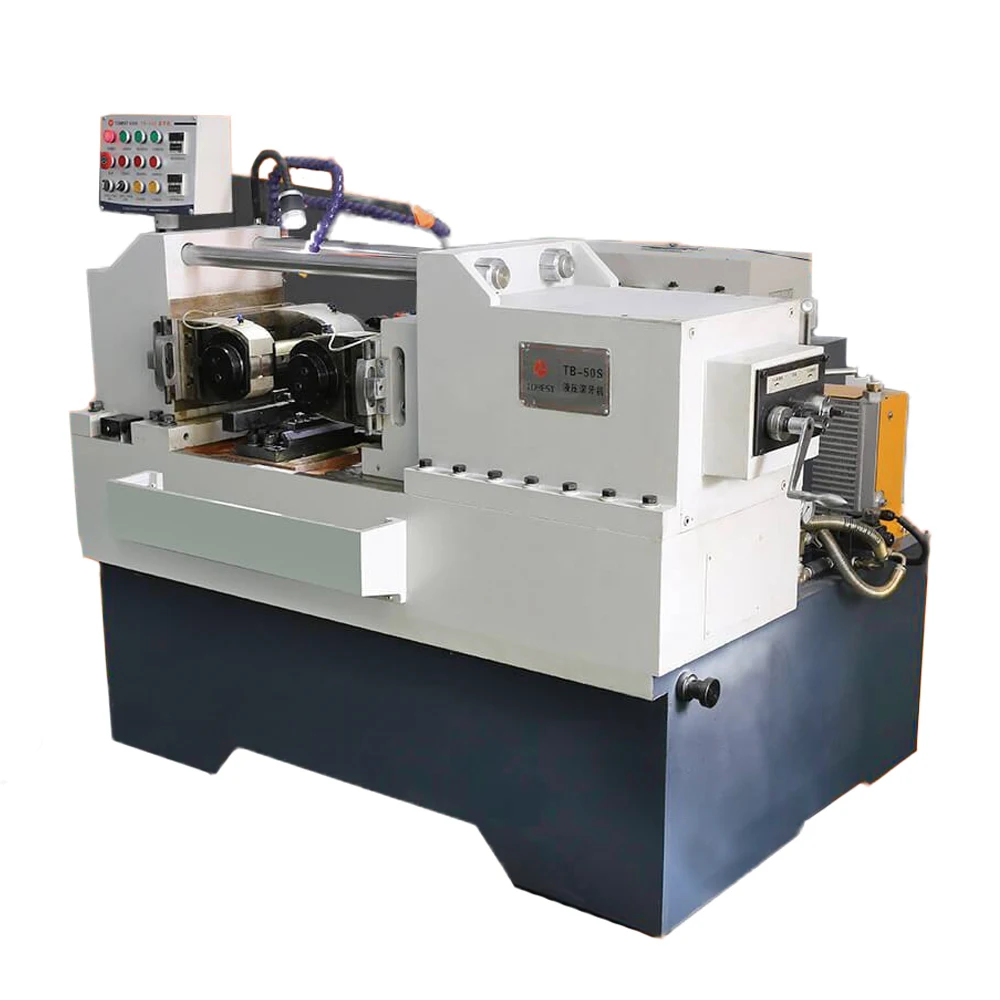

Technical parameter of Tobest TB-50S
| Work piece diameter | φ12-φ100/mm | |||||||
| Range of pitch rolled | 1.-eight.0P | |||||||
| Length of thread rolled | In feed and Thru feed for option | |||||||
| Spindle speed | sixteen/twenty five/40/63rpm (variable speed) | |||||||
| OD of rolling die | φ145-φ235mm | |||||||
| ID of rolling die | φ75mm | |||||||
| Thickness of rolling die | 120mm | |||||||
| Distance between the roller shaft | 140-320mm | |||||||
| Output(pcs/min) | 4-twenty five(pcs/min) | |||||||
| Main power motor | 10HP(7350W) | |||||||
| Hydraulic motor | 4HP | |||||||
| Max rolling pressure | 25T | |||||||
| Supply voltage | 380V | |||||||
Merchandise display:
Associated merchandise:
bolts robs bars threading producing equipment automated hydraulic via feed thread rolling equipment maker
Model:TB-50ST
vehicle feeding thread rolling device fasteners making machine TB-50S
Design:TB-50S
massive measurement hydraulic 3-die pipe tube in feed and through feed thread rolling equipment
Product:TB-60A
Tobest thread rolling head for CNC lathe device milling machine substantial precision thread rolling tools
Model:TB-01RH
