Overview
Fast Information
- Area of Origin:Zhejiang, China
- Model Title:
-
OEM
- Product Variety:
-
57BL75S10-225TF9+RV30 10:one
- Use:
-
Property Appliance, Industrial
- Certification:
-
CCC, ce, ISO
- Type:
-
Gear MOTOR
- Torque:
-
.38NM
- Building:
-
Everlasting Magnet
- Commutation:
-
Brushless
- Safeguard Feature:
-
Other
- Speed(RPM):
-
2500RPM
- Constant Recent(A):
-
1.4A
- Performance:
-
IE 1
- Item Name:
-
24v worm gear dc motor
- Motor type:
-
brushless
- Rated Voltage:
-
24v DC
- Dimensions:
-
57mm* 75mm
- Coloration:
-
Black motor,silver gearbox
- Gear ratio:
-
10:1
Packaging & Shipping and delivery
- Offering Models:
- Single item
- One package dimensions:
- 25X20X20 cm
- Single gross fat:
- four.000 kg
- Deal Kind:
- polyfoam, cardboard carton
-
Guide Time
: -
Quantity(Sets) one – ten eleven – a hundred >100 Est. Time(days) five 20 To be negotiated
On the internet Customization

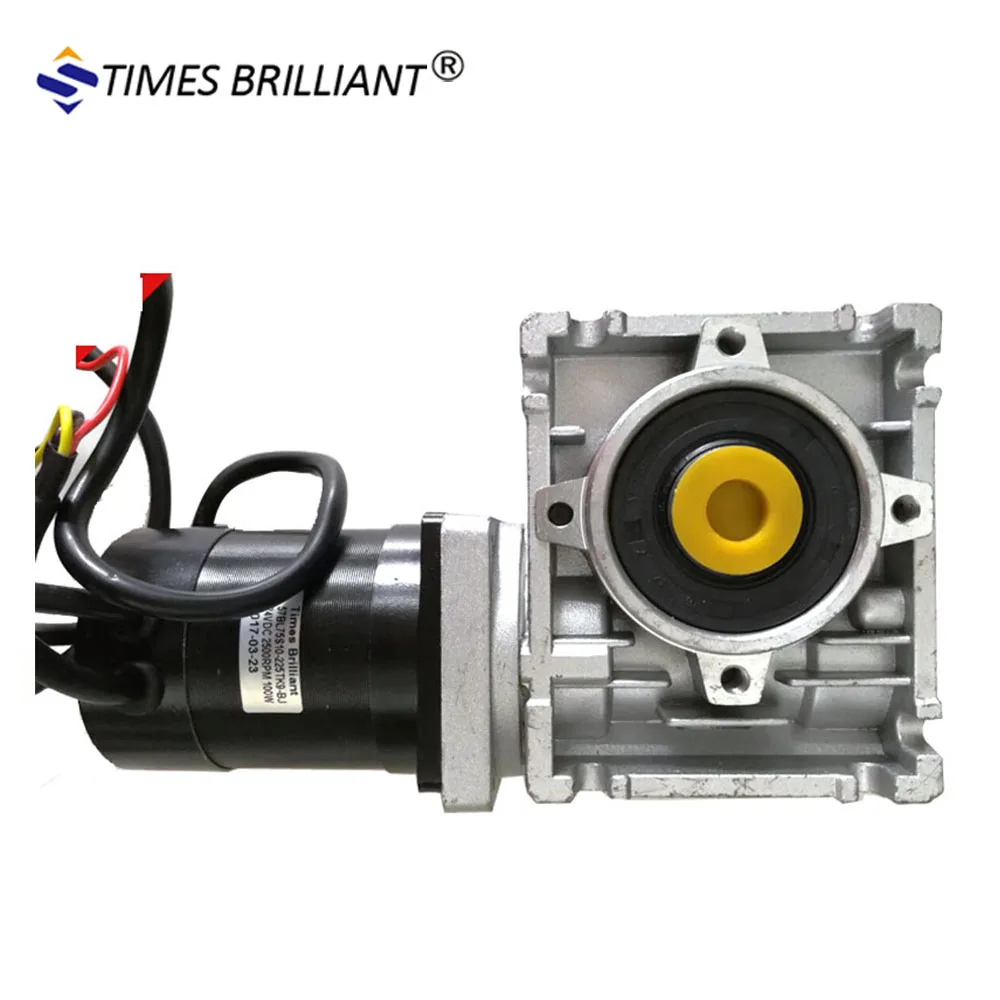

24v brushless DC motor with worm gearbox RV30 10:1(yet another ratio is available)
250RPM 2.5Nm following equipment,need to have controller to generate.
Merchandise Description
| Model |
Voltage
V |
Rated Power W |
Rated Torque N.M |
Rated Speed rpm |
No Load Pace rmp |
Rated Existing A |
No Load Recent A |
Poles |
| 57BL55S02-212 | 24 | 22 | .one hundred seventy five | 1200 | 2000 | 1.4 | .two | 4 |
| 57BL55S06-230 | 24 | sixty | .eighteen | 3000 | 4800 | 3.3 | .three | two |
| 57BL75S10-225 | 24 | one hundred | .38 | 2500 | 3500 | five.9 | .8 | 4 |
| 57BL75S10-230 | 24 | one hundred | .32 | 3000 | 4500 | five.9 | .eight | two |
| 57BL95S06-210 | 24 | sixty | .six | one thousand | 2000 | three.6 | .four | four |
| 57BL95S15-230 | 24 | 150 | .5 | 3000 | 4500 | eight.seven | .8 | 2 |
| 57BL95S15-230 | 24 | 150 | .5 | 3000 | 4500 | eight.7 | .eight | two |
| 57BL115S18-230 | 24 | one hundred eighty | .57 | 3000 | 4500 | ten.7 | one.1 | two |
| 57BL115S21-230 | 24 | 210 | .7 | 3000 | 5000 | 13 | one.three | four |
| 57BL75S10-336 | 36 | a hundred | .265 | 3600 | 4600 | 3.8 | .four | two |
| 57BL95S15-336 | 24 | a hundred and fifty | .4 | 3600 | 4700 | 5.seven | .five | 2 |
| 57BL115S30-3150 | 310 | three hundred | .57 | 5000 | 6200 | one.three | .2 | two |
Dimension
L=75MM
Matched worm gear:
RV thirty, RV forty, RV fifty, RV 63, RV seventy five, RV ninety collection worm reducer
Velocity ratio alternatives: 7.five ten fifteen 20 twenty five thirty forty fifty 60 80 one hundred other velocity ratio customizable
Worm equipment measurement:
Ratio specifics of Worm equipment:
Worm gear output shaft way can be asked for as below:
Packaging & Transport
Shippment by air require 3-7days,
by categorical need to have four-15days(FEDEX,DHL,UPS,TNT,ARMEX)
by sea need fifteen-30days.
