Overview
Quick Details
- Area of Origin:Zhejiang, China
- Manufacturer Title:
-
OEM
- Product Quantity:
-
60HSG67-4004
- Phase:
-
two
- Variety:
-
Hybrid
- Existing / Stage:
-
4A
- Certification:
-
CCC, ce, RoHS, UL
- Merchandise title:
-

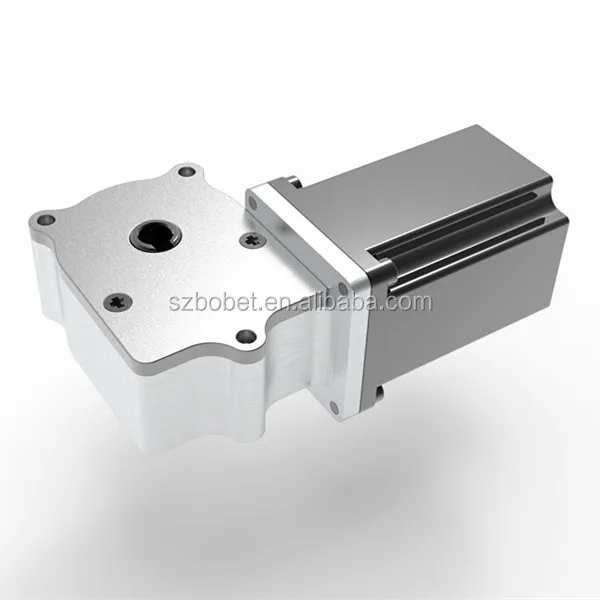

Bobet 60mm measurement double gap gearbox one:20 stepper motor
- Key terms:
-
stepper motor,nema 24 stepper motor,stepper driver
- Software:
-
industrial cnc
- Frame:
-
nema 24 (60*60mm)
- Inductance Precision:
-
one.8mH
- Resistance Accuracy:
-
.55Ω
- motor fat:
-
1kg
- lead wires no.:
-
4
- motor length:
-
67mm
- other identify:
-
stepper engine
Packaging & Shipping and delivery
- Marketing Units:
- Solitary merchandise
- One package deal dimensions:
- 10X5X5 cm
- Solitary gross bodyweight:
- 5.000 kg
- Package Kind:
- Common Export Carton And Pallet
Tailored Label and Carton Satisfactory
nema 24 stepper motor stage motor
-
Guide Time
: -
Amount(Items) one – 1 2 – twenty >20 Est. Time(times) seven 10 To be negotiated
On-line Customization
Nema 24 stepper motor 60mm 2phase one.8°
Gearbox ratio:1:20, 1:fifty,1:eighty
Product Description
2 section step motor nema 34 Hybrid stepper motor:
Electrical Specification:
| Design No. |
Action Angle (°) |
Voltage /Period (V) | Existing /Phase (A) |
Resistance /Phase (Ω) |
Inductance Stage (mH) | Keeping Torque (kg.cm) | Detent Torque (g.cm.Max) | Motor Length (mm) | Guide Wires No. | Motor Bodyweight (kg) |
| BST60HS45-3004 | one.8 | 2.four | 3 | .eight | 1.6 | nine.5 | 350 | forty five | 4 | .fifty five |
| BST60HS56-3004 | one.8 | two.four | 3 | .8 | 2.four | 16 | 400 | fifty six | 4 | .8 |
| BST60HS67-4004 | one.8 | 2.2 | four | .fifty five | one.eight | 20 | five hundred | 67 | 4 | one |
| BST60HS67-2808 | one.eight | 3.four | 2.eight | one.two | 4 | 21 | five hundred | 67 | 8 | 1 |
| BST60HS88-4004 | one.8 | three.2 | four | .8 | 3.5 | 30 | 1200 | 88 | 4 | one.4 |
| BST60HS88-2808 | one.eight | four.5 | 2.eight | one.six | 7 | 30 | 1200 | 88 | 8 | 1.4 |
| BST60HS100-3504 | 1.eight | 3.2 | 3.5 | .9 | 3.eight | 32 | 1400 | a hundred | 4 | 1.6 |
Nema 24 action motor drawing and wiring:
Gearbox drawing:
Our major goods consists of stepper motors, closed loop method, gear reducer stepper motor, linear stepper motor, brake stepper motor, stepper motorists, controller board, spindles, energy supplys, and other components.
Our products are extensively utilised in 3D printers, CNC routers, Engraving Machines, phase lights management, stability surveillance, video gear, laserworkstation, carving machine, office automation, intelligent toy, digital controlled equipment and medical instrument and other automated products.
